CoRe: Combined Rewards with Vision-Language Model Feedback for Preference-Aligned Reinforcement Learning

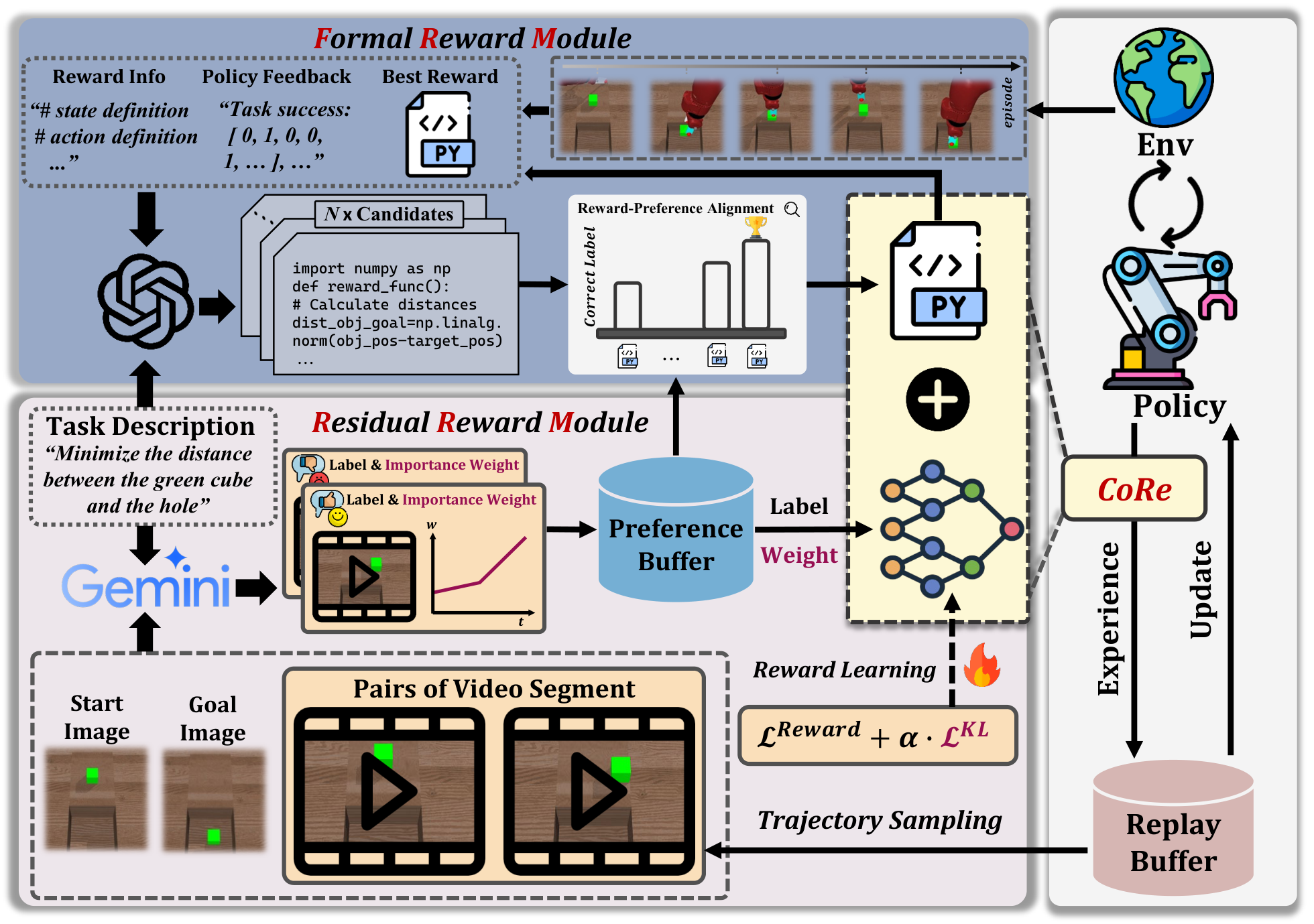

CoRe decomposes the task reward into a Formal Reward Module (FRM) and a Residual Reward Module (RRM). FRM leverages LLMs together with VLM-based preferences to iteratively generate and refine code-based rewards; RRM incorporates video-level preferences and state-importance from VLMs to complement FRM and ensure alignment with human intent.

Abstract

Experiments

Simulation Experiments

Videos

Task Description

Results

Comparison of final success rate (%) and episode reward across ten tasks. Bold values indicate best performance.

Learning Curves

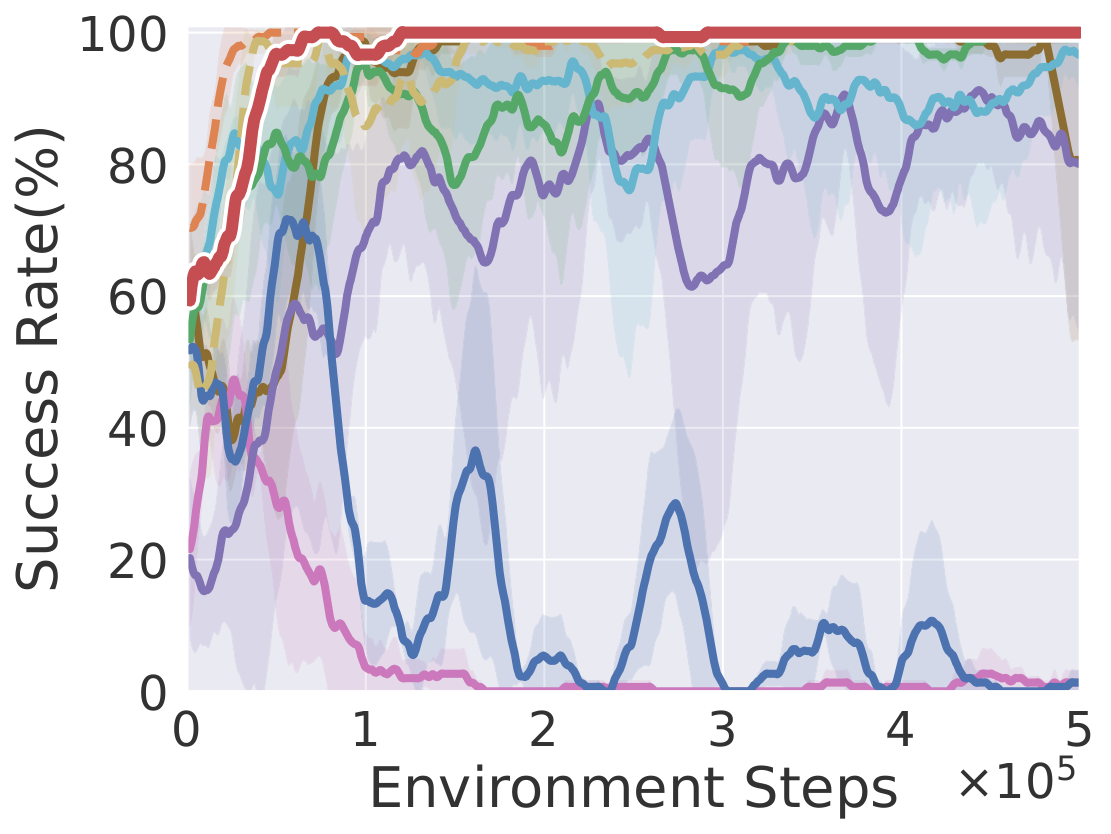

Soccer

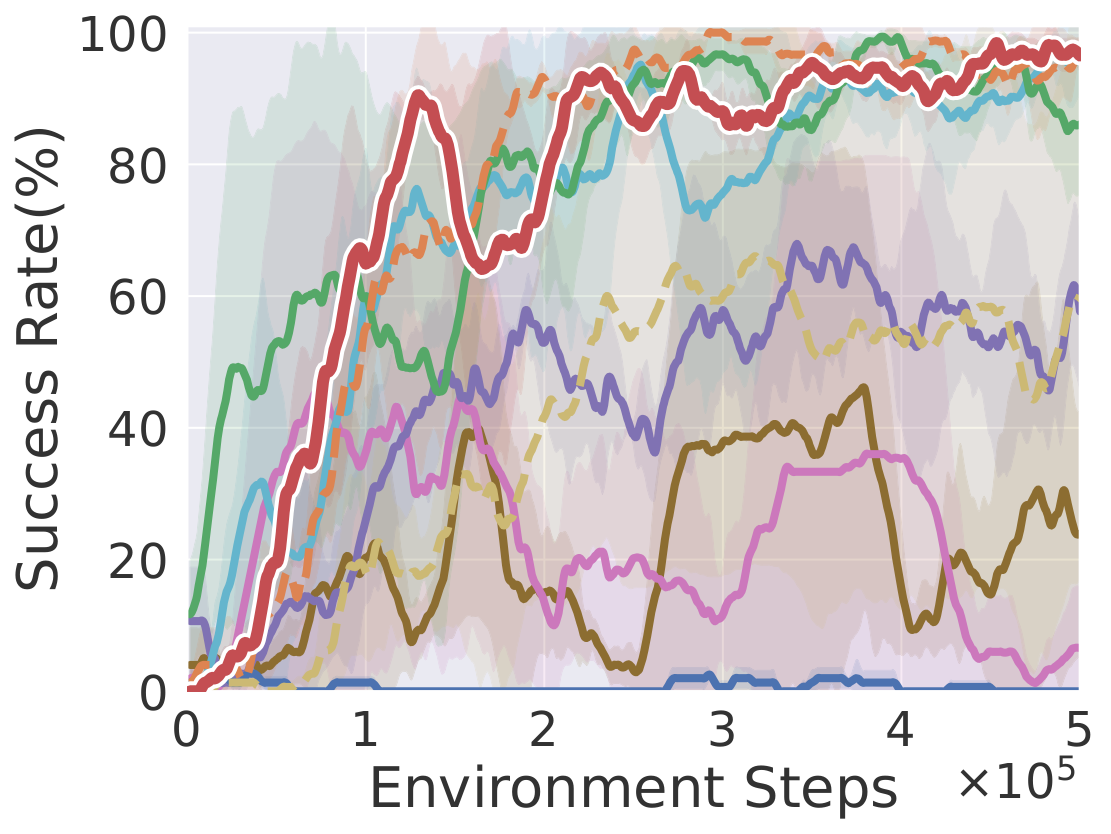

Sweep Into

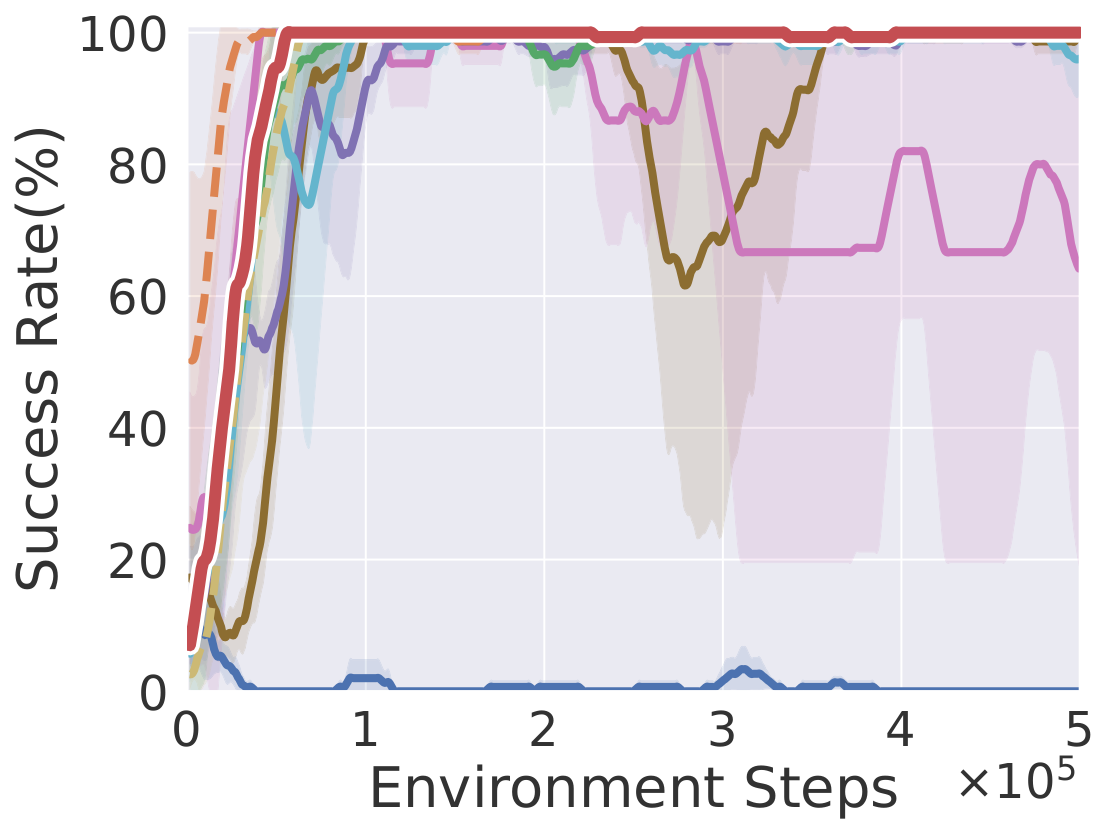

Drawer Open

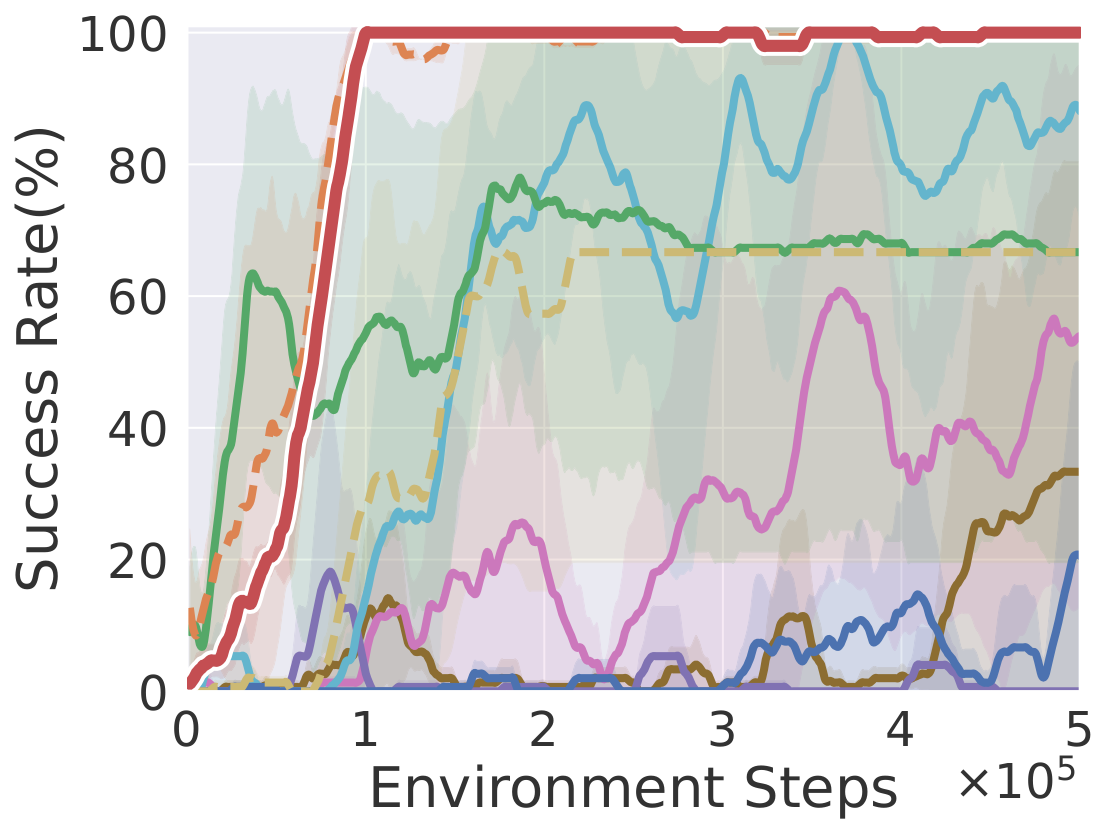

Button Press

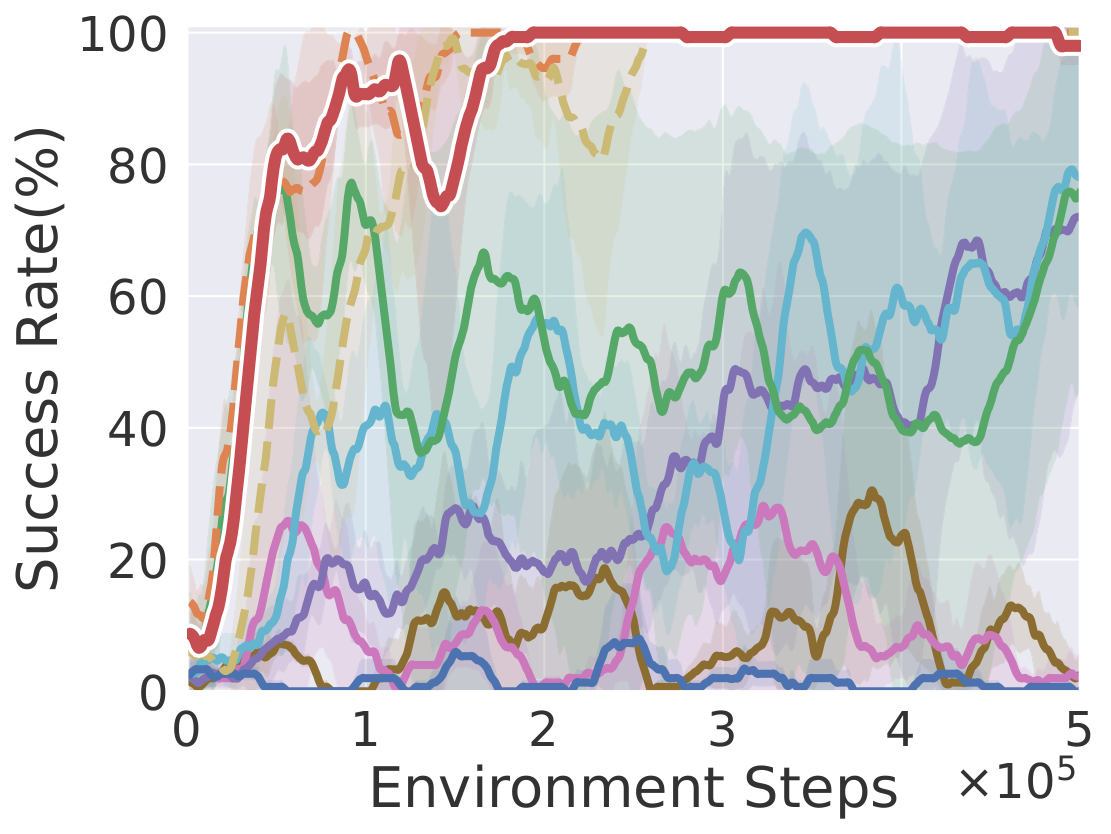

Dial Turn

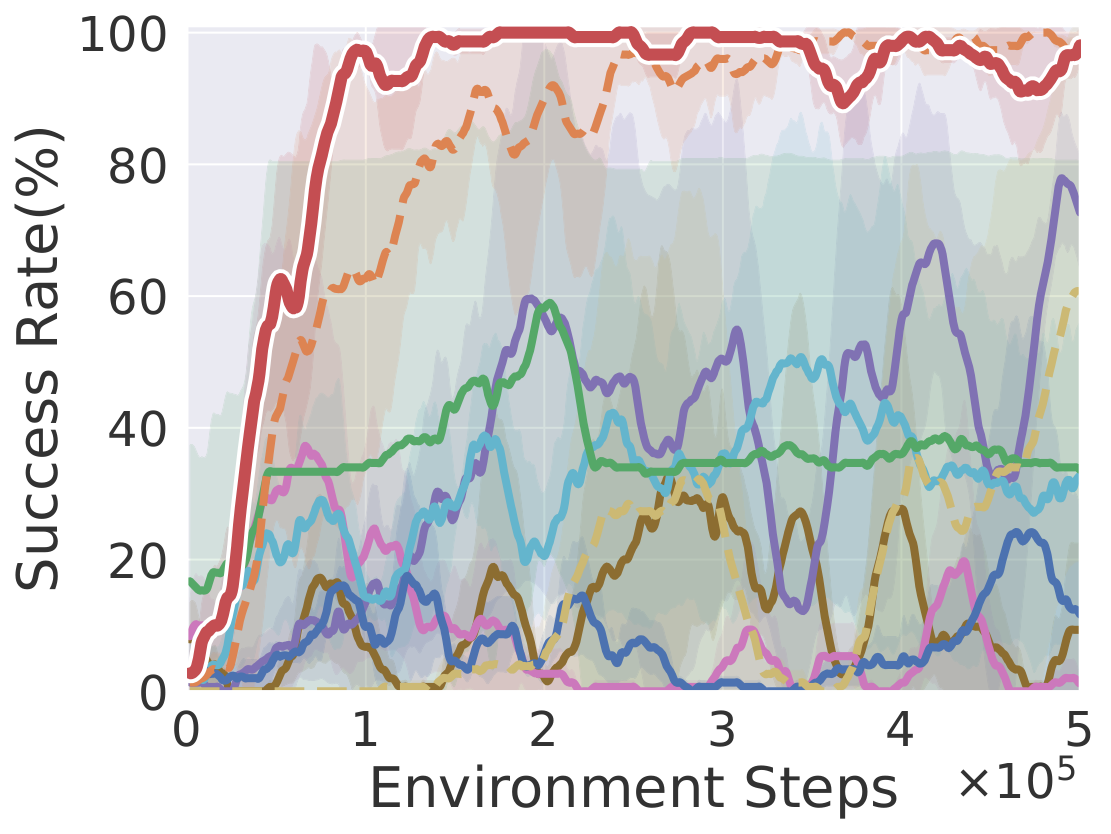

Hammer

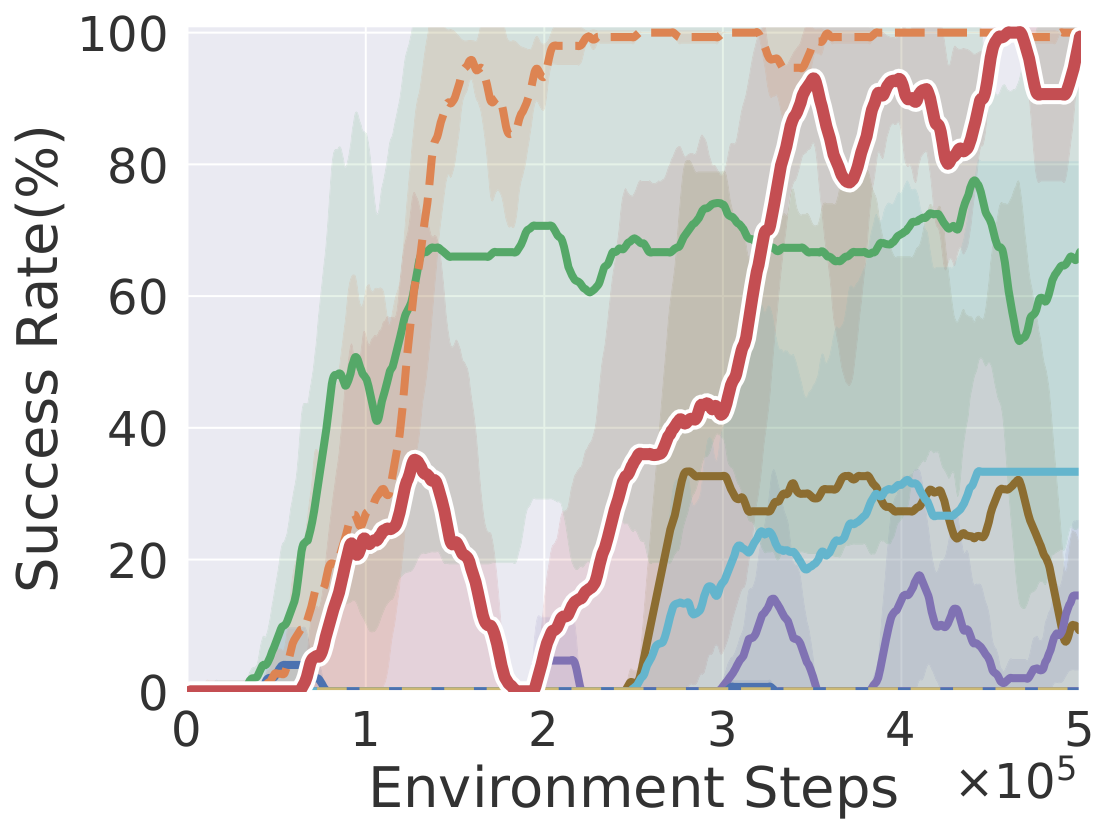

Peg Insert

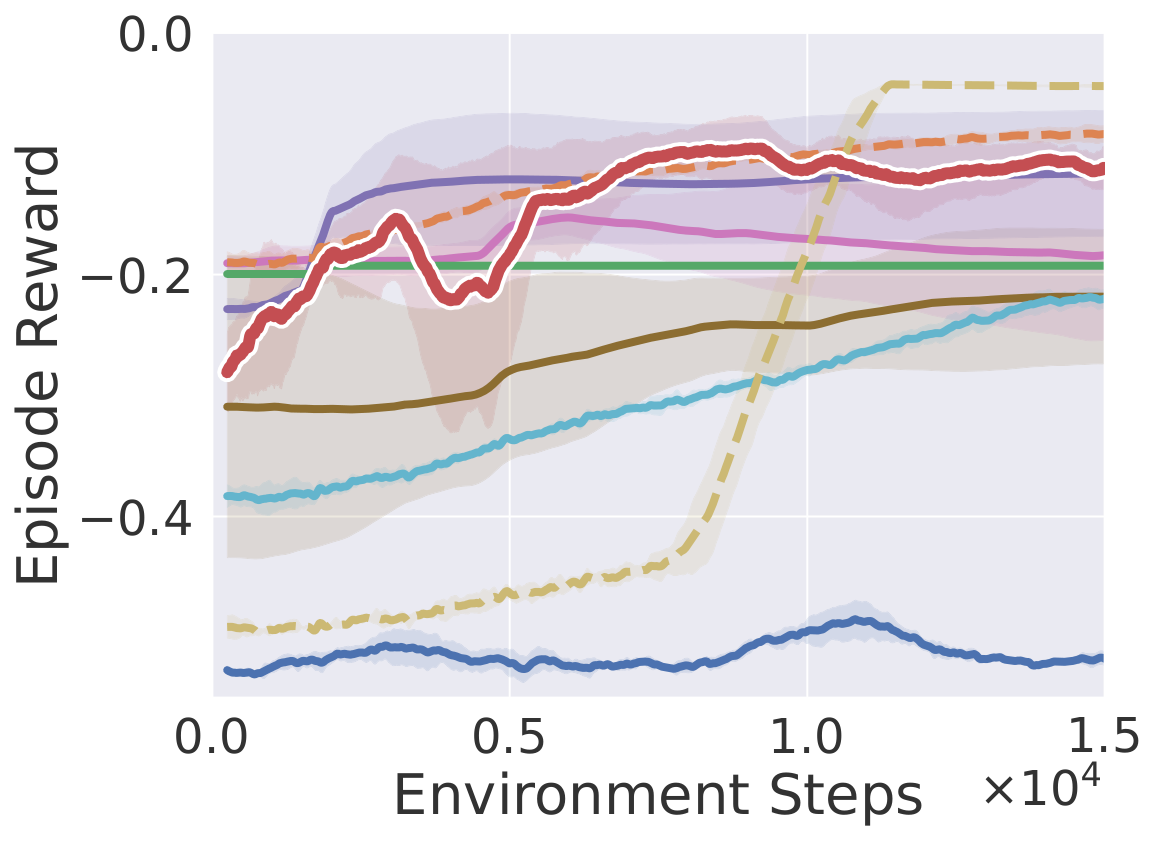

Fold Cloth

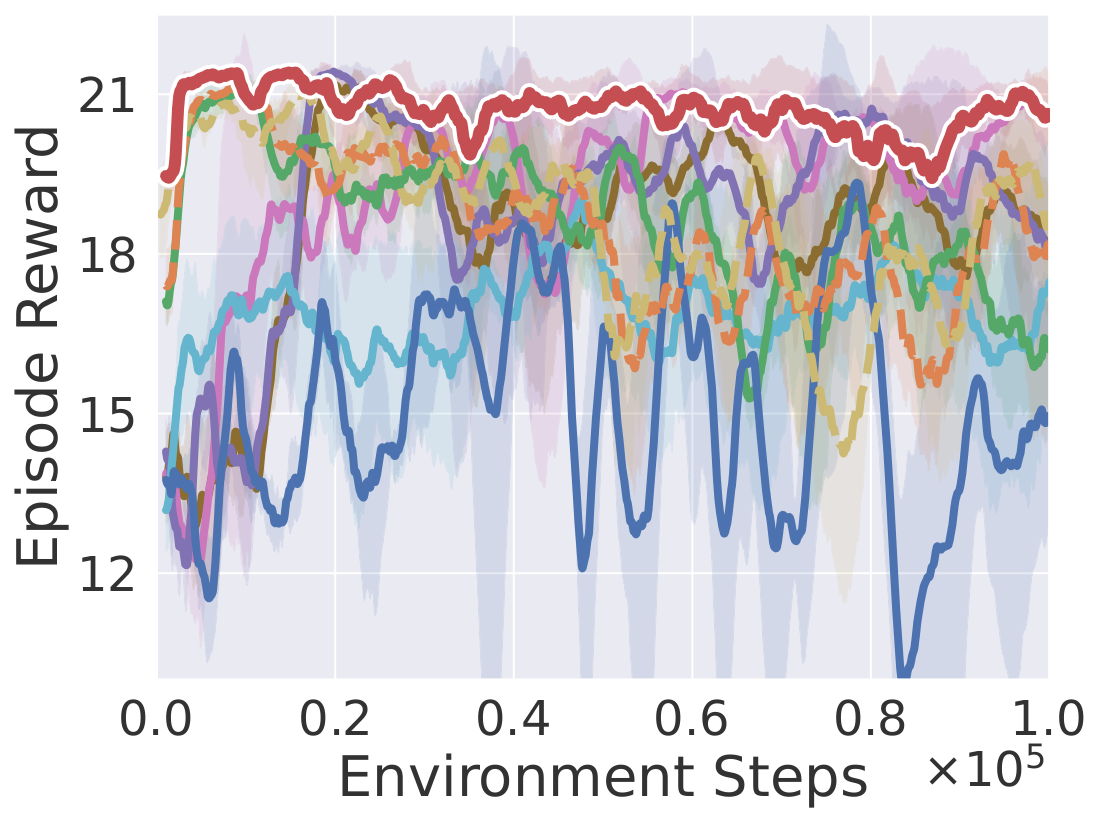

Straighten Rope

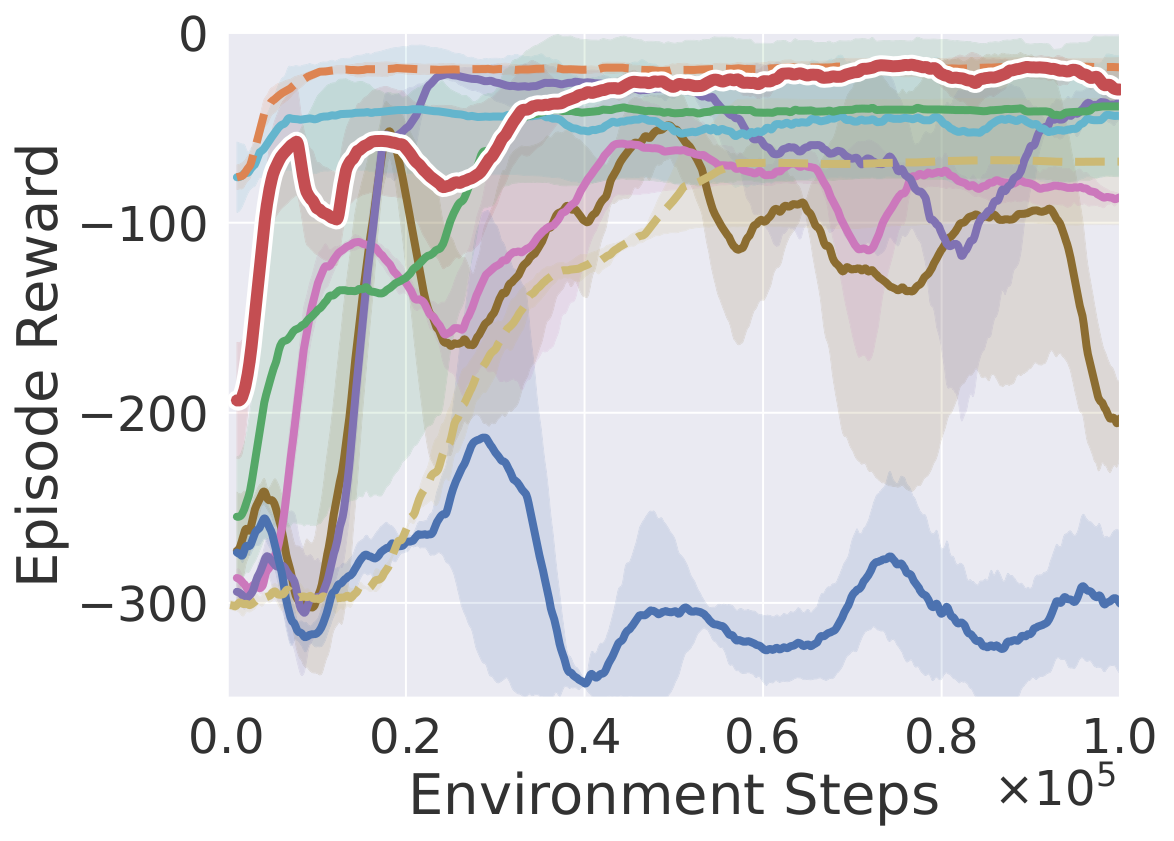

Pass Water

Learning curves on ten robotic manipulation tasks (success rate / episode reward). Solid lines and shaded regions denote mean and standard deviation over three seeds.

FRM Code

LLM-generated formal reward for Sweep Into.

import numpy as np
def reward_function(observation, action, target_pos):
    # Unpack observation components
    # observation = [x_hand, y_hand, z_hand, gripper_open, x_obj, y_obj, z_obj, qx_obj, qy_obj, qz_obj, qw_obj]
    hand_pos = observation[0:3]
    # gripper_open = observation[3]  # Normalized gripper opening, not needed for sweep task specifically
    obj_pos = observation[4:7]
    # obj_quat = observation[7:11]   # Not used in reward for sweeping

    # Distance from object to target (hole)
    dist_obj_to_target = np.linalg.norm(obj_pos - target_pos)

    # Distance from hand to object
    dist_hand_to_obj = np.linalg.norm(hand_pos - obj_pos)

    # We want to reward the cube being closer to the hole,
    # and encourage the hand to stay near the cube to sweep it.
    # Also encourage progress towards the goal.

    # Temperature parameters for exponential scaling
    temp_obj_to_target = 0.5
    temp_hand_to_obj = 1.0

    # Reward component: cube closer to target gives higher reward (range 0 to 1)
    # Apply negative distance scaled and exponentiated
    r_obj_to_target = np.exp(-dist_obj_to_target / temp_obj_to_target) - 0.5  # shift to roughly center near 0

    # Reward component: hand close to object (to encourage interaction)
    r_hand_to_obj = np.exp(-dist_hand_to_obj / temp_hand_to_obj) - 0.5  # shift to roughly center near 0

    # Combine rewards with weights
    # Since these scores range roughly in [-0.5, 0.5], sum ranges [-1, 1]
    reward = r_obj_to_target + r_hand_to_obj

    # Clip total reward to [-1, 1]
    reward = np.clip(reward, -1.0, 1.0)

    # Compose individual reward dict for info/debugging
    reward_components = {
        "cube_to_target": r_obj_to_target,
        "hand_to_cube": r_hand_to_obj,
    }

    return reward, reward_components

Video-Level Preference Feedback

VLM video-level preference label between two trajectory videos.
